MPX165.3 HERTZ MILLE PRO 6.5" 2-WAY COAXIAL SPEAKER




MPX165.3 HERTZ MILLE PRO 6.5" 2-WAY COAXIAL SPEAKER

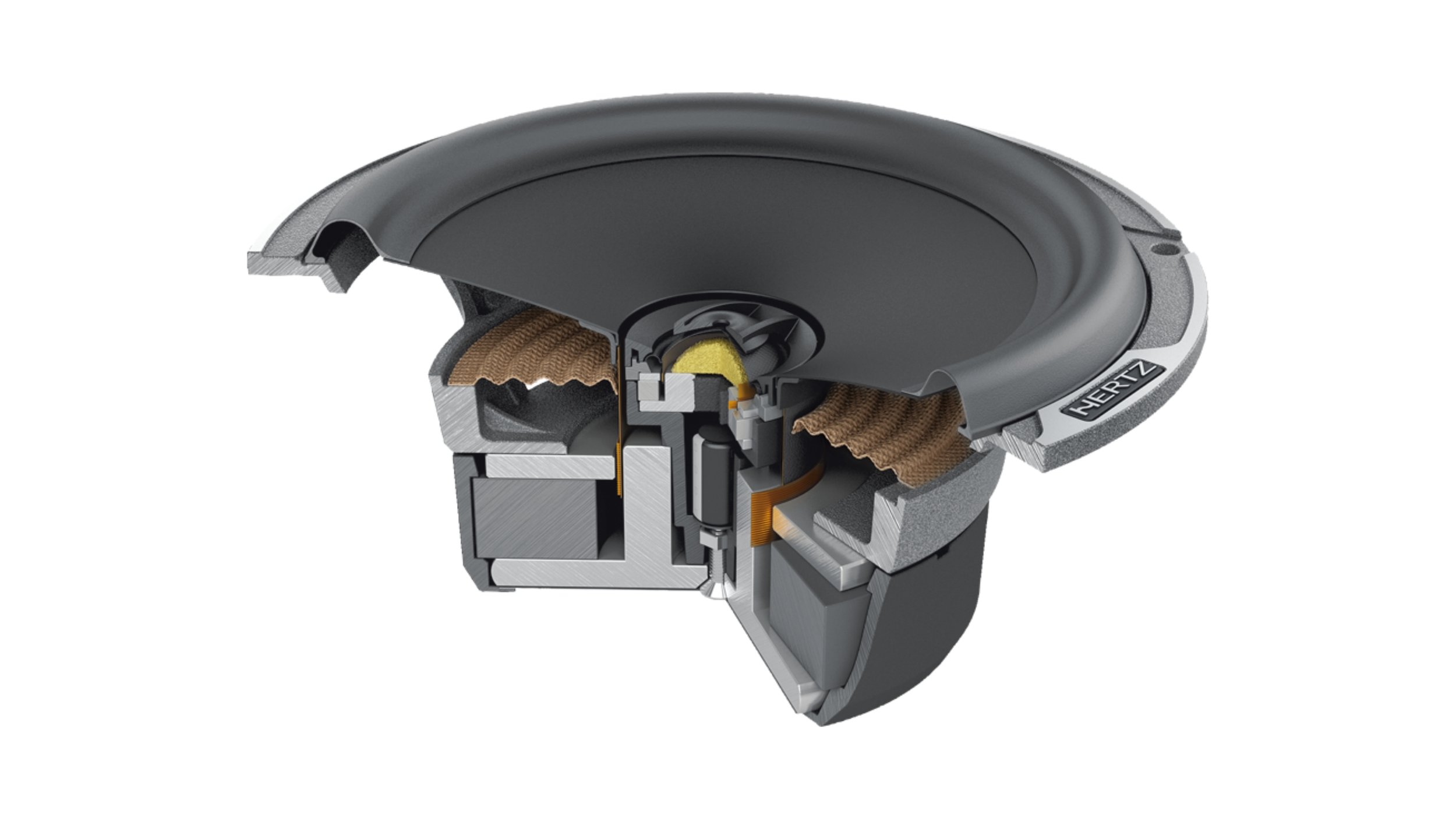

Introducing the Hertz Mille Pro MPX 165.3 PRO, a 6.5" 2-way coaxial speaker system designed for high-fidelity performance in factory locations. The system features a coaxial tweeter mounted concentrically with the woofer, allowing both drivers to act as a single linear-phase emission point. This design ensures natural timbre and accurate imaging, creating a rich and immersive soundstage from a compact coaxial format.
The tweeter incorporates “Center Tuning Duct” geometry, which lowers its resonance frequency and enhances linearity. Internal damping materials further smooth its acoustic response, delivering clean, controlled high frequencies.
An acoustic lens is integrated into the tweeter to optimize off-axis dispersion, a crucial feature for door-mounted speaker installations. The 36mm woofer voice coil delivers deep, tight, and controlled bass, ensuring a full-bodied sound across the frequency range.
Specification
System: Coaxial
Size: 165mm (6.5")
Power Handling:
Continuous: 100W
Peak: 200W
Impedance: 4 Ohm
Tweeter Diaphragm:
Woofer Voice Coil: 36mm (1.42")
Tweeter Voice Coil: 20mm (0.8")
Frequency Response: 45 - 21k Hz
Woofer Magnet Size (D x d x h): 90 x 45 x 17mm (3.54 x 1.77 x 0.67")
Tweeter Magnet Size (D x h): 29.5 x 22 x 4 (1.16 x 0.87 x 0.16")
Weight of One Speaker: 1.27 kg
Woofer Magnet: High Density Flux Ferrite
Tweeter Magnet: Neodymium
Cone: Pressed-pulp cone with cotton fibers
Dome: Tetolon
Xmech: +/- 6mm (0.24")
