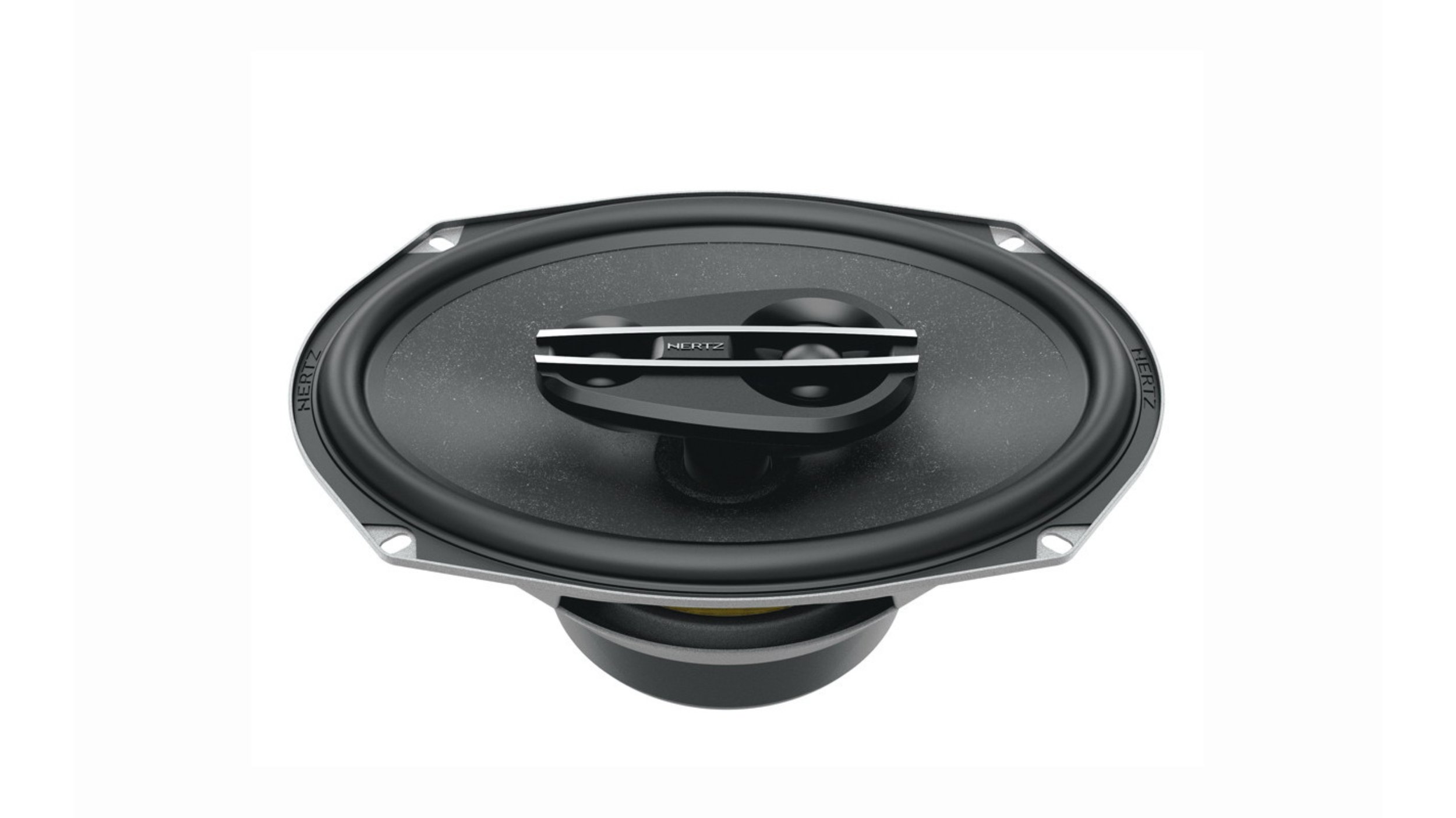

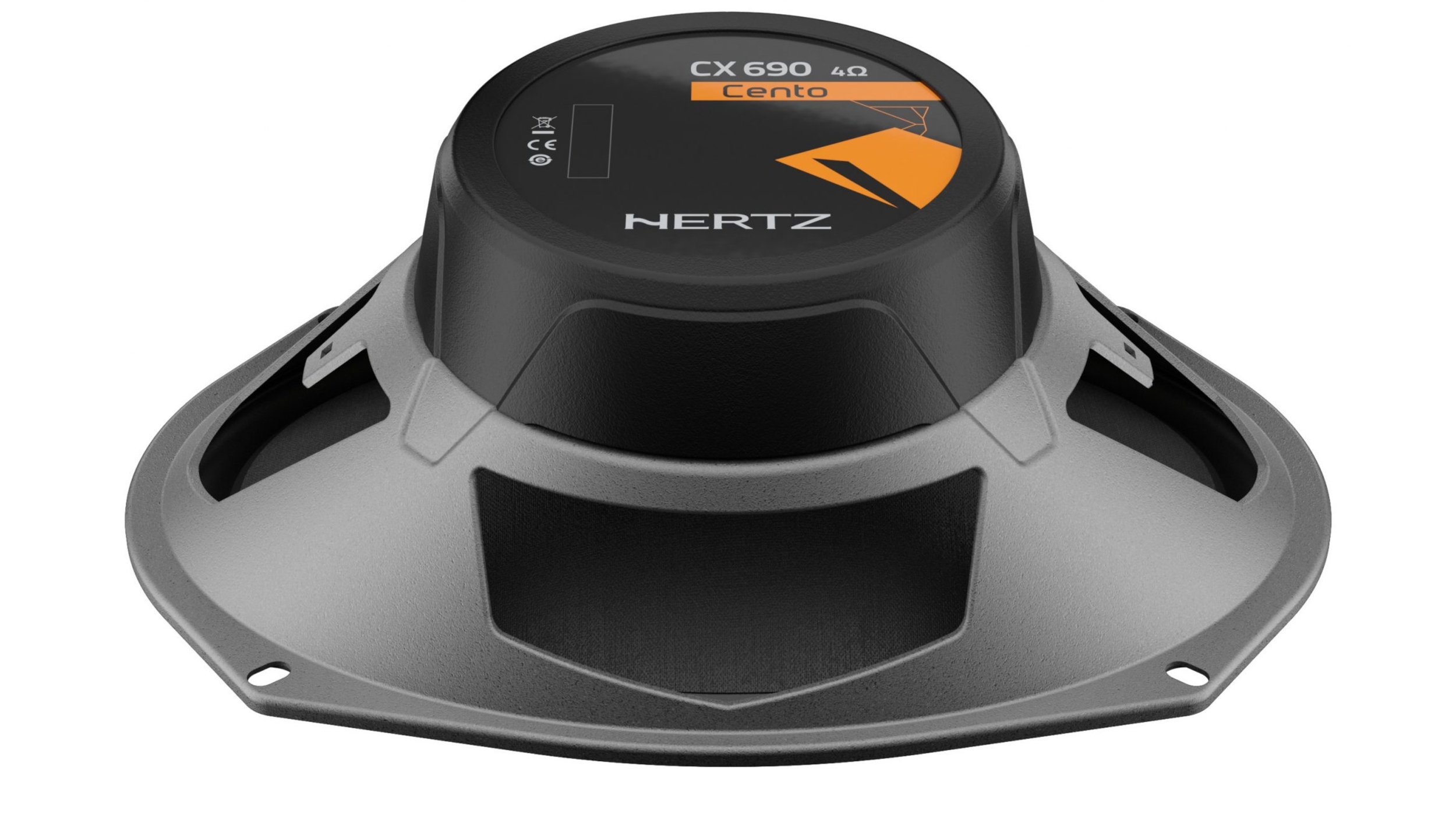

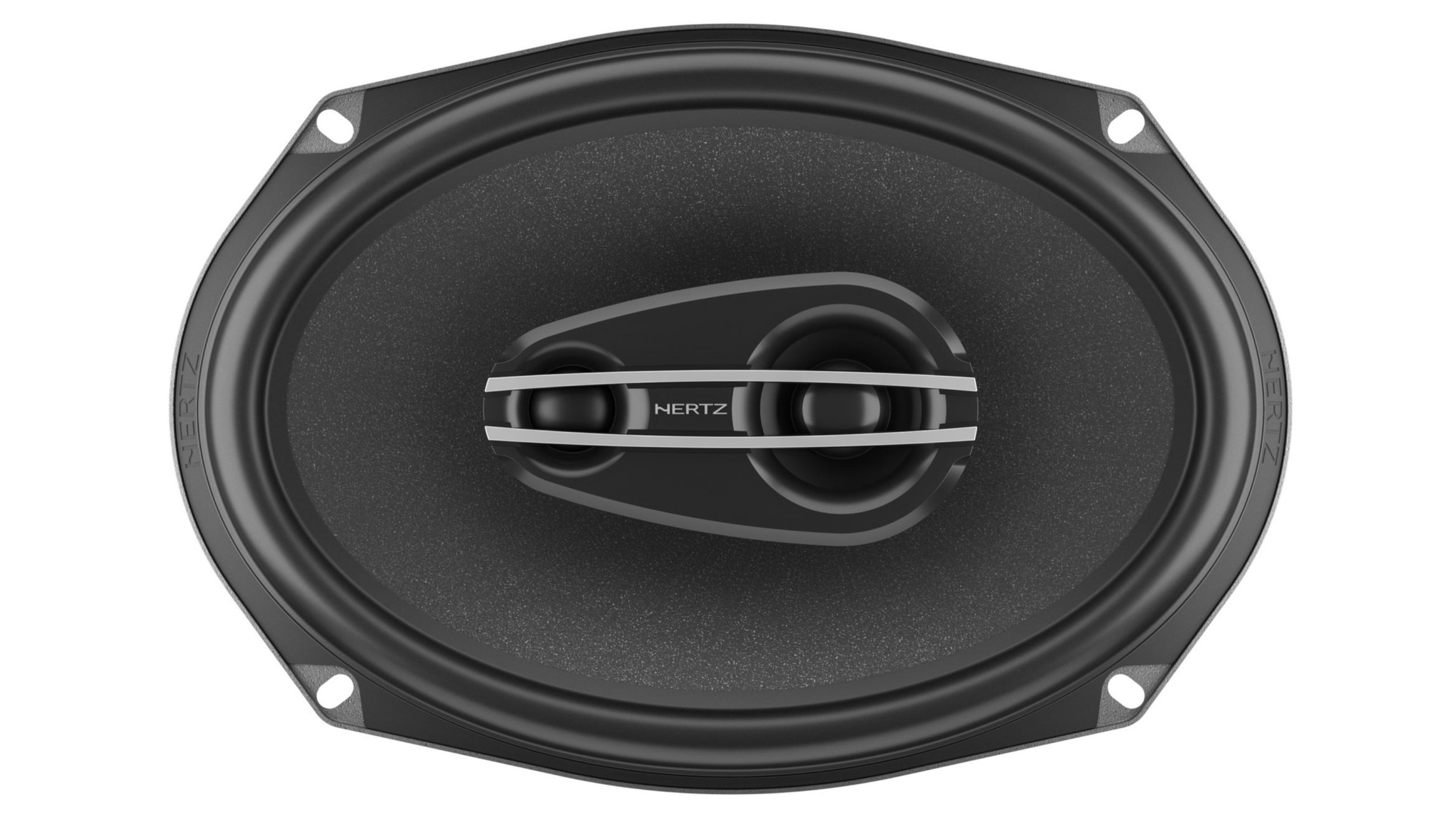

CX690 HERTZ CENTO 6x9" 3-WAY COAXIAL SYSTEM 300W WITH GRILLES



CX690 HERTZ CENTO 6x9" 3-WAY COAXIAL SYSTEM 300W WITH GRILLES
The Cento CX 690 is a high-performance 3-way elliptical coaxial speaker system, engineered to deliver powerful, balanced sound even in the most challenging horizontal installations. Featuring a 6x9" cone, it’s specifically designed to maximize acoustic performance in factory rear-deck and door placements where traditional round speakers may fall short.
Despite the inherent challenges of horizontal mounting, the CX 690 maintains excellent tonal balance, broad frequency response, and robust power handling, ensuring rich lows, detailed mids, and clear highs across all genres.
Whether upgrading a factory system or building a full aftermarket setup, the CX 690 offers the versatility and musicality Hertz is known for—without compromise.
Specification
SPEAKER SYSTEM: 3-WAY COAXIAL
SIZE:
WOOFER: 6x9"
TWEETER DIAPHRAGM: 40mm (1.58")
SUPETWEETER DIAPHRAGM: 20mm (0.8")
VOICE COIL SIZE:
WOOFER: 30mm (1.2")
TWEETER: 28mm (1.1")
SUPERTWEETER: 20mm (0.8")
POWER HANDLING:
PEAK: 300W
CONTINUOUS: 100W
SENSITIVITY: N/A
IMPEDANCE: 4 OHM
FREQUENCY RESPONSE: 40 - 23KHZ
WOOFER MAGNET SIZE: 100mm (D) x 32mm (D) x 15mm (H)
TWEETER MAGNET SIZE: 19mm (D) x 3mm (D)
WOOFER MAGNET: HIGH DENSITY FLUX FERRITE
TWEETER MAGNET: NEODYMIUM
CONE: SEMI-PRESSED PAPER & MICA
DOME: PEI
WEIGHT OF ONE SPEAKER: 1.55KG
