CP5.1K HERTZ CENTO POWER 1030W 5 CHANNEL AMPLIFIER


CP5.1K HERTZ CENTO POWER 1030W 5 CHANNEL AMPLIFIER

A$1,099.99

Elevate your in-car sound experience with the Hertz CENTO POWER CP 5.1K, a compact and efficient 5-channel amplifier crafted for audio enthusiasts who demand both performance and precision. Hi-Res Audio certified, the CP 5.1K delivers an expansive frequency response from 10 Hz to 41 kHz, capturing every musical nuance with crystal clarity.

Housed in a sleek aluminium die-cast chassis, this powerhouse delivers over 85% efficiency, thanks to its advanced Class-D architecture. Whether you’re running a full-range speaker setup or a dedicated subwoofer channel, the CP 5.1K is fully bridgeable—making it incredibly versatile for system design and expansion.

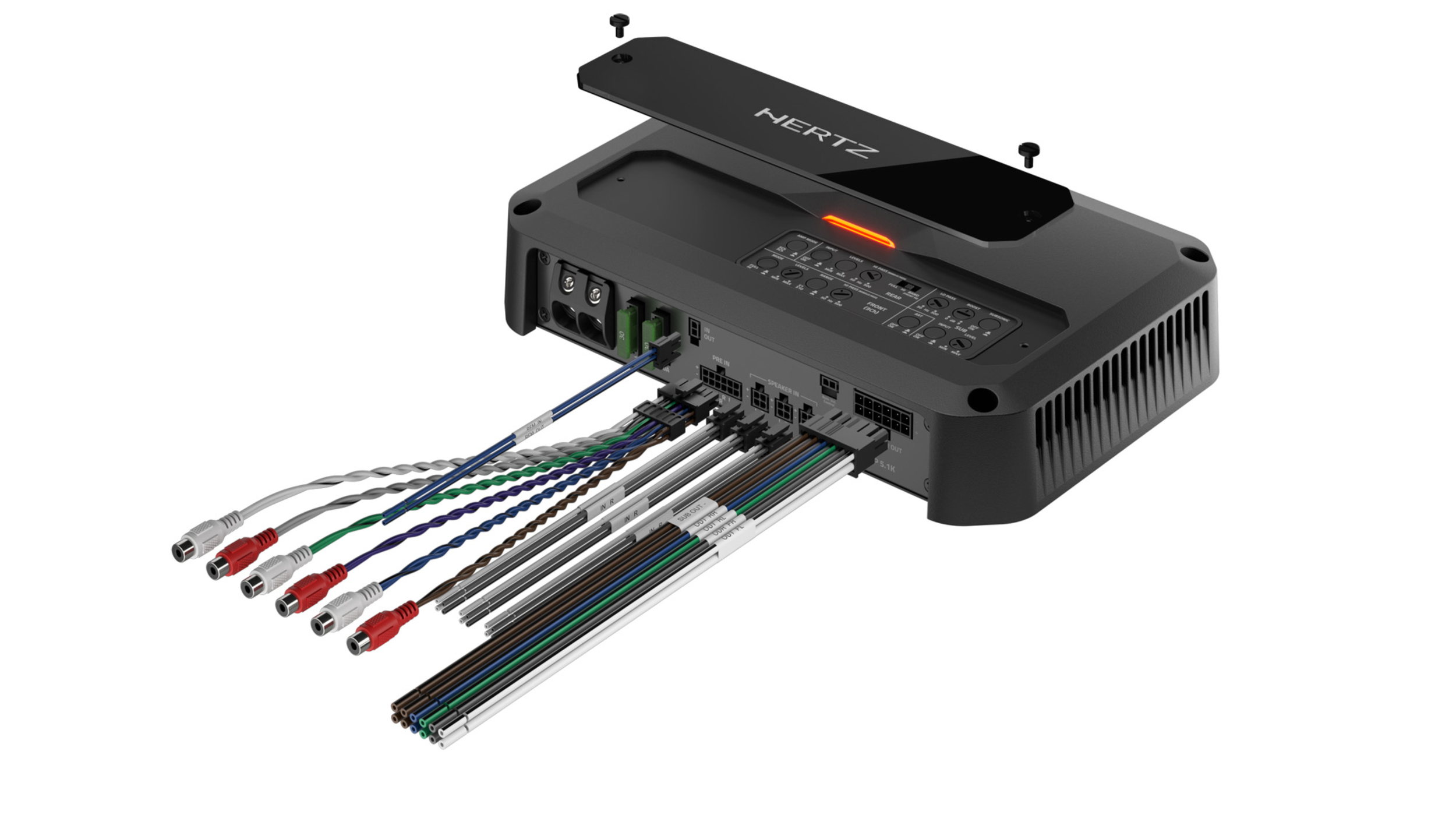

Installation is a breeze with Ready to Plug connectivity, and tuning is just as intuitive, with a comprehensive control panel and adjustable input levels that give you complete command over your sound.

Quantity:
Add To Cart

CP5.1K: CENTO POWER 1030W 5 CHANNEL AMPLIFIER (CP 5.1K)PriceYour Cost: $500.00 (GST Exc.) / RRP: $1099.99 (GST Inc.)
* Online Order : Qty.Availability

In stock

CategoryHERTZ > CAR AUDIO > AMPLIFIERSBarcode8018823142410Inner/OuterInner: n.a | Outer: 2Description

Discover the essence of car audio excellence with the Hertz CENTO POWER CP 5.1K. This five-channel amplifier is certified for Hi-Res Audio, ensuring a frequency response from 10 Hz to 41 kHz, for the most authentic listening experience. Boasting an efficiency greater than 85% within its compact, aluminum diecast casing, the CP 5.1K is fully bridgeable and offers full Ready to Plug connectivity for effortless installation. With its adjustable input levels and comprehensive control set, this model is perfect for those who demand superior sound quality and aesthetic refinement in their vehicle’s audio system.

Specification

  • Channels: 5 - 3

  • Amp class: D

  • Nominal power supply voltage (fuse): 11 - 15 VDC (2 x 30 A)

  • Operating power supply voltage: 9 - 18 VDC

  • Idling current: 1.90 A

  • Standby current draw: 4 uA

  • Consumption, MIN load impedance (Max Musical Power): 48 A

  • Remote IN: 4 - 17 VDC (1 mA)

  • ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC

  • Efficiency: 83%

  • Distortion - THD at 100 Hz, 70% Rated Power: 0.01 % (F/R Ch) – 0.06 % (SUB Ch)

  • Damping factor at 1 kHz, 1W: 160 (F/R Ch) - 180 (SUB Ch)

  • Bandwidth at -3 dB: 0Hz - 47kHz (F/R Ch) - 10Hz - 500Hz (SUB Ch)

  • S/N ratio (A-weighted at 1 V Input): 101 dBA (F/R Ch) - 116 dBA (SUB Ch)

  • Minimum load impedance:

    • at 5 Ch: 2 OHM

    • at 3 Ch: 4 OHM + 4 OHM + 2 OHM

  • Adjustable Crossovers: Yes

  • Output power (RMS) @ 1% THD:

    • 5Ch @ 4 OHM: 80 W x 4 + 330 W x 1

    • 5Ch @ 2 OHM: 130 W x 4 + 510 W x 1

    • 3Ch @ 2 OHM / 4 OHM: 260 W x 2 + 510 W x 1

    • 2Ch @ 4 OHM: 260 W x 2 + 320 W x 1

  • Total Power: 1030 W

  • Inputs: Pre-In / Speaker-In

  • Pre Out: Full Range (Front)

  • Pre-In sensitivity: 0.32 - 8 VRMS

  • Speaker-In sensitivity: 1.6 - 40 VRMS

  • Front Ch Hi-Pass: Full / 50-5000Hz 12dB/Oct.

  • Rear Ch Lo-Pass: Full / 50-5000Hz 12dB/Oct.

  • Sub Ch Lo-Pass: 50 - 500 Hz at 24 dB/Oct.

  • Bass Boost 50Hz: 0 - 9 dB

  • Subsonic Hi-Pass: 25 Hz at 24 dB/Oct.

  • Sub Remote Volume Control: -20 - 6 dB (Active on Sub Ch)
